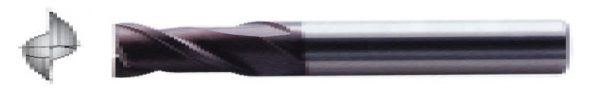

EUROPA ดอกเอ็นมิลคาร์ไบด์ 2 ฟัน ชุบ TiAlN
| รหัสสินค้า | TiAIN
Carbide |

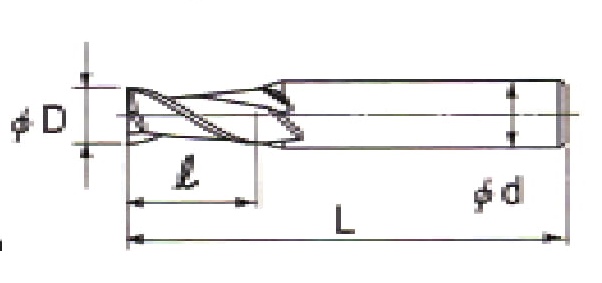

D | d

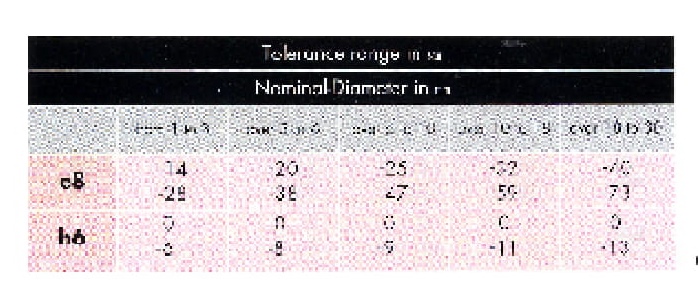

(h6) |
l | L |
| EU-0101010 | 3001MA010 | 1.0 | 4.0 | 3.0 | 50.0 |
| EU-0101015 | 3001MA015 | 1.5 | 4.0 | 4.0 | 50.0 |
| EU-0101020 | 3001MA020 | 2.0 | 4.0 | 6.0 | 50.0 |
| EU-0101025 | 3001MA025 | 2.5 | 4.0 | 8.0 | 50.0 |
| EU-0101030 | 3001MA030 | 3.0 | 4.0 | 9.0 | 50.0 |
| EU-0101040 | 3001MA040 | 4.0 | 4.0 | 11.0 | 50.0 |
| EU-0101050 | 3001MA050 | 5.0 | 6.0 | 13.0 | 50.0 |
| EU-0101060 | 3001MA060 | 6.0 | 6.0 | 16.0 | 50.0 |
| EU-0101070 | 3001MA070 | 7.0 | 8.0 | 16.0 | 60.0 |
| EU-0101080 | 3001MA080 | 8.0 | 8.0 | 19.0 | 60.0 |
| EU-0101090 | 3001MA090 | 9.0 | 10.0 | 19.0 | 60.0 |
| EU-0101100 | 3001MA100 | 10.0 | 10.0 | 25.0 | 75.0 |
| EU-0101120 | 3001MA120 | 12.0 | 12.0 | 30.0 | 75.0 |
| EU-0101140 | 3001MA140 | 14.0 | 14.0 | 32.0 | 75.0 |
| EU-0101160 | 3001MA160 | 16.0 | 16.0 | 32.0 | 100.0 |
| EU-0101180 | 3001MA180 | 18.0 | 18.0 | 32.0 | 100.0 |
| EU-0101200 | 3001MA200 | 20.0 | 20.0 | 38.0 | 100.0 |
